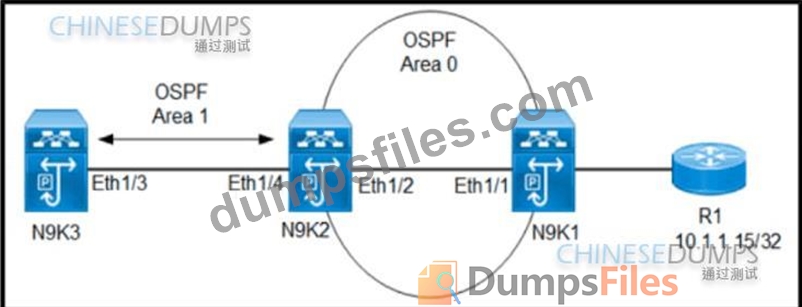

Refer to the exhibit. The network 10.1.1.15/32 is advertised to N9K1. N9K2 and N9K3 OSPF neighbors in area 1. Which configuration advertises network 10.1.1.15/32 as LSA type 7 to N9K3?

• A.  N9K2(config-router)# area 1 stub no-summary
  N9K3(config-router)# area 1 stub
• B.  N9K2(config-router)# area 1 nssa
  N9K3(config-router)# area 1 nssa
• C.  N9K1(config-router)# area 0 nssa
  N9K2(config-router)# area 0 nssa
• D.  N9K1(config-router)# area 0 stub no-summary
  N9K2(config-router)# area 0 stub

An engineer must configure a user role interface policy on a Cisco Nexus 9000 Series Switch. The role must prevent access to interface FC3/2 but allow access to interface FC3/1. Which set of actions must be taken to accomplish this goal?

• A.  Configure deny interface policy. Deny interface FC3/2. Permit interface FC3/1.
• B.  Configure permit interface policy. Permit interface FC3/2. Permit interface FC3/1.
• C.  Configure permit interface policy. Deny interface FC3/2. Deny interface FC3/1,
• D.  Configure deny interface policy. Permit interface FC3/2. Deny interface FC3/1.

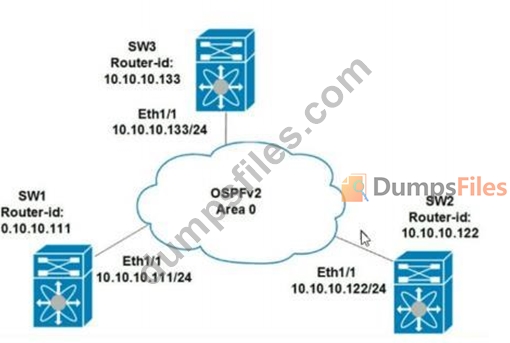

Refer to the exhibit. All switches are configured with the default OSPF piority.Which configuration should be applied to ensure that the SW2 Cisco Nexus switch controls the LSA floods and advertises the network to the remaining nodes m the OSPFv2 area?

• A.  Option D
• B.  Option C
• C.  Option B
• D.  Option A

Service degradation is reported on a VM that is deployed on a Cisco UCS blade server. The traffic from the vNIC is required to SPAN in both directions to a packet analyzer that is connected to UCS-A slot 2 port 12.
Which two commands are needed to complete the configuration? (Choose two.)

• A.  UCS-A/eth-1raffic-mon/fabric/eth-mon-session* # create eth-mon-session/dest-interface 2 12
• B.  UCS-A/org/service-profile/vnic/mon-src* # set direction both
• C.  UCS-A/org/service-profile/vnic/mon-src* # set direction receiv# transmit
• D.  UCS-A/eth-traffic-mon/fabric/eth-mon-session # activate
• E.  UCS-A/eth-traffic- mon/fabric/eth -mon-session* # create dest-interface 2 12

Refer to the exhibit. A traffic collector virtual machine is installed inside the Cisco UCS server. The collector must monitor traffic that is received on G1/2 with ERSPAN. Which set of actions must be taken to send the traffic to the traffic collector?

• A.  Configure ERSPAN. Configure a source session on the SW1 switch.
• B.  Configure SPAN. Configure a source session on Cisco UCS Manager.
• C.  Configure ERSPAN. Configure a source session on Cisco UCS Manager.
• D.  Configure SPAN. Configure a source session on the SW1 switch.
