Question 1/50

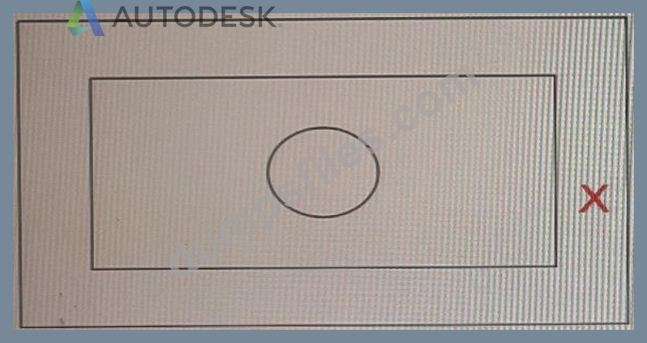

You are using the HATCH command in a drawing. You select the internal point that corresponds with the X as shown in the following exhibit.
Move each setting from the list on the left to the corresponding result on the right.
Move each setting from the list on the left to the corresponding result on the right.
Correct Answer:
Explanation

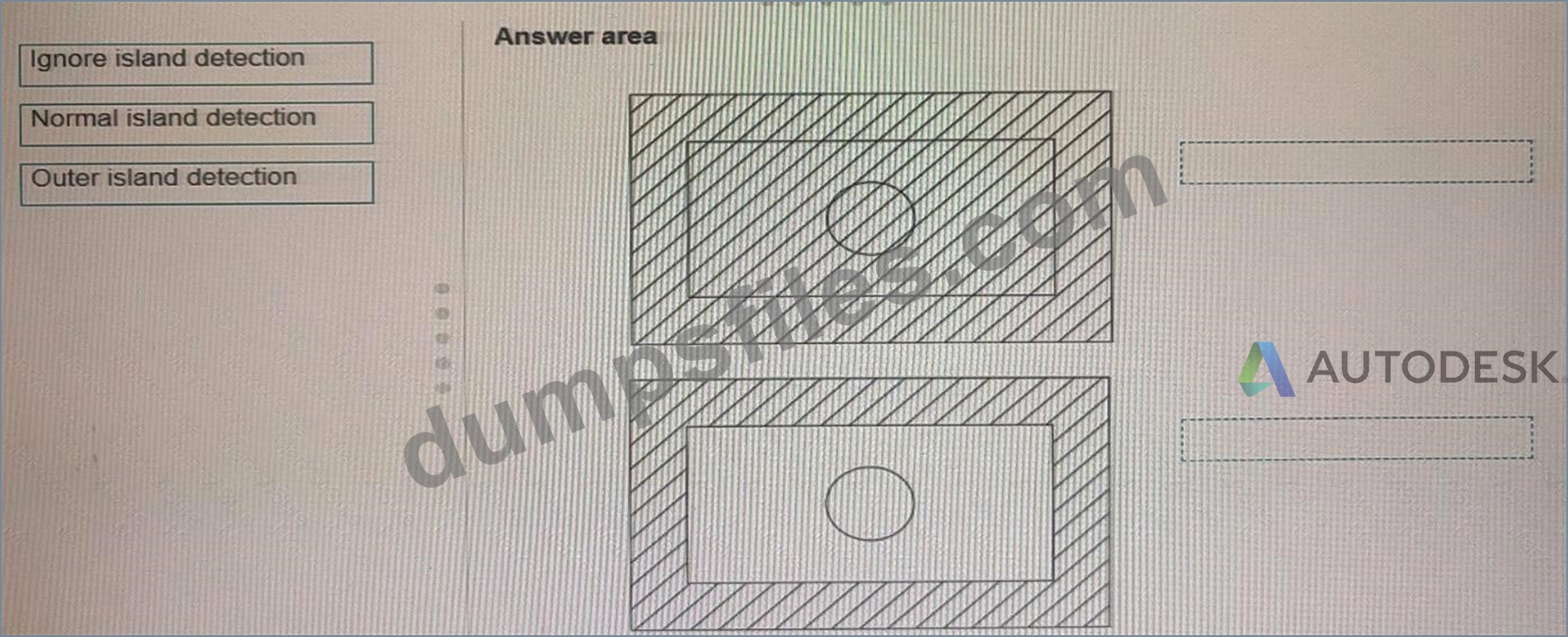

Box 1 = ignore island detection
Box 2 = Outer island detection
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2021/ENU/AutoCAD
Add Comments
